Cost-Effective Narrow-Web Processing
Preco's WebPro® LB3000 series are narrow web-based laser systems for roll-to-roll or roll-to-discrete part processing. These smaller, turnkey systems are ideal for lean manufacturing, short run production or process development. Available in two different widths, the base systems feature reel-to-reel processing with single or dual lasers. The base systems may include additional features to accommodate inbound lamination, in-line mechanical slitting, loose discs output conveyor, differential rewinding or robotic stacking.
Applications
- Loose Discs
- Disc Rolls
- Hook & Loop
- Stick-On Discs
- Tabbed Discs
Capabilities
- Cutting
- Marking/Etching
- Kiss-Cutting
- Perforating
- Slitting
Materials
- Paper
- Polymer
- Cloth
- Fiber
- Hook & Loop
- Adhesives
Preco Laser Technology Advantages
Lightning Bolt™ AcuVision
Registers parts before processing and aligns cut pattern to ducials - either printed or mold marks. Inspection of part available after processing for 100% quality control.
Fast Processing Speed
Cut parts from moving webs for maximum production rates.
Soft tooling process, that is ‘flexible’
Eliminates tool and die fabrication, maintenance, and storage costs.
Laser cutting is a forceless process
Produces intricate patterns and ne details. Superior part quality that cannot be replicated using the die cut process.
Easy to use Windows® based software
Enables make-to-order processing of short-run or complex jobs.
Ramp up / Ramp down control
Eliminates scrap caused by overpowering of material at slower than normal processing speeds.

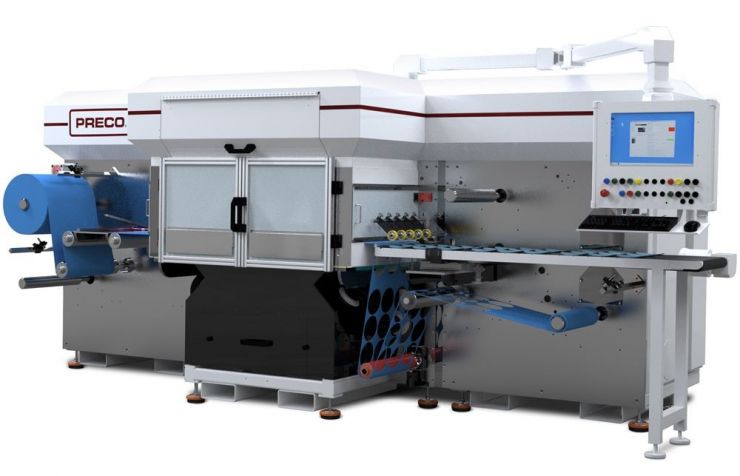

WebPro System, 12" - 24" wide web, 1 - 2 lasers with 400 W, 600 W and 1,000 W options
Tech Parameters
| Model | LB3100 | LB3200 |
| Quantity of Lasers | 1 | 1 – 2 |
| Output Heads | 1 | 1 – 2 |
| Web Width (standard) | 305 mm (12 in) | 610 mm (24 in) |
| Web Automation (standard) | 75 mm (3 in) core airchucks, single unwind, single silicone or urethane coated nip drive, single rewind | |
| Laser Power* | 400, 600 and 1000 Watts | |
| Laser Wavelengths | 9.3 µm, 10.2 µm or 10.6 µm | |
| Galvanometers | 3-Axis, field-of-view is process-dependent | |
| AcuBeam™ Software | Windows® based with full graphical / CAD interface | |
| Patented AcuPower™ Control | Adjustment of laser power "on-the-fly" based on the beam movements | |
| Job Database | Reduces setup time; consistent production from operator to operator | |
| Lower Vacuum Work Support | Included, with debris collection bin | |
| Safety Enclosure | Class 1 | |
| Processing Speeds** | Up to 30.5 m/min (100 ft/min) | |
| Abrasive Grits | With holes: 36 grit or higher | |
| Without holes: 24 grit or higher | ||
| System Footprint | Length: 3.2 m (10.5 ft) | Length: 3.2 m (10.5 ft) |
| Width: 1.85 m (6 ft) | Width: 2.16 m (7 ft) | |
| Height: 2.2 m (7 ft 2 in) | Height: 2.2 m (7 ft 2 in) | |
| Power Requirements*** | Controller & Chiller (Int) - 380-420 VAC, 3 PH, 50 Hz | |
| Controller & Chiller (US) - 200-230 VAC, 3 PH, 60 Hz | ||
The above data is subject to change. Consult with Preco, Inc.
*Other laser sizes available per request
**Processing speed is dependent on the part size and geometry, laser power, material type and thickness.
***May be powered separate or by laser system.
System Options
The WebPro LB3000 is available with a variety of options including laminators, rotary die cutters, or multiple stations consisting of both lasers and rotary die cutters.
- Web Automation

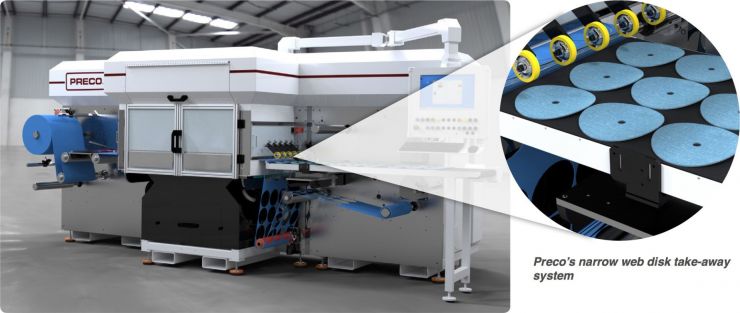

Web steering, Closed loop web tensioning or dancers, Pre or post process lamination, Weed/scrap stripping, Knife Slitting, Discrete part take-away conveyor, Guillotine Sheeter, 152 mm (6 in) core airchucks or adapters, Splice detection, Vision QC - Conveyor
Delivers discs from cut zone to operator or robotic stacking workstation
- Vision Registration System
Single or dual cameras for X-Y-Ø positioning of the cut pattern to material features - Lower Vacuum Work Support
External filtering or debris separator - Robotics
Single or dual spider robots and stacking conveyors
ADDITIONAL OPTIONS
- Unwind with Steering
- Splice Detector
- Tension Control
- Weed Wind-Up
- Rewind
- Web Break Sensor
- Slitter / Air Amplifier
- Work Support
- Nip Drive
- Splice Table
- Edge Guide Sensor
- Strip Roller
