Cost-Effective Jumbo Roll Processing
Preco's WebPro® LB3500 series are wide web-based, traveling head laser systems for roll-to-roll or roll-to-discrete part processing. This unique system provides the capability to process wide format material with a single high speed scanner delivered laser. It is ideal for processing wide web products with low production needs. The LB3500 is available as a "drop in" laser workstation to an existing web line or turnkey with an unwind, rewind and optional robotic stacking.
Applications
- Loose Discs
- Disc Rolls
- Hook & Loop
- Stick-On Discs
- Tabbed Discs
Capabilities
- Cutting
- Marking/Etching
- Kiss-Cutting
- Perforating
- Slitting
Materials
- Paper
- Polymer
- Cloth
- Fiber
- Hook & Loop
- Adhesives

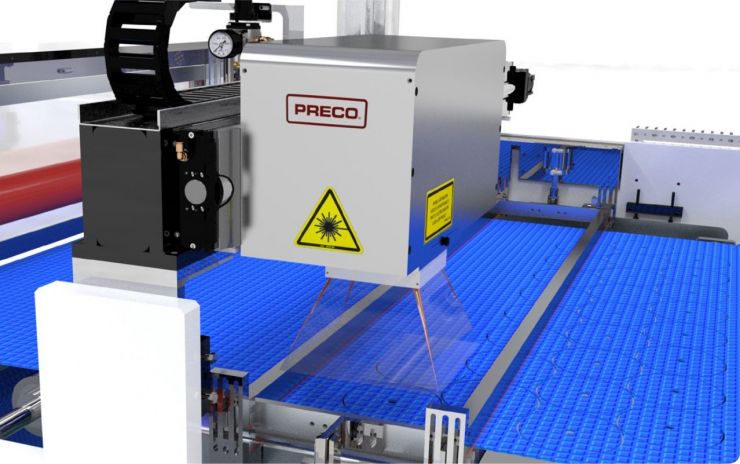

LB3500 platform wide web traveling head web system, 400 W - 2,000 W options
Preo Laser Technology Advantages
Lightning Bolt™ AcuVision
Registers parts before processing and aligns cut pattern to fiducials - either printed or mold marks. Inspection of part available after processing for 100% quality control.
Fast Processing Speed
Cut parts from moving webs for maximum production rates.
Soft tooling process, that is ‘flexible’
Eliminates tool and die fabrication, maintenance, and storage costs.
Laser cutting is a forceless process
Produces intricate patterns and fine details. Superior part quality that cannot be replicated using the die cut process.
Easy to use Windows® based software
Enables make-to-order processing of short-run or complex jobs.
Ramp up / Ramp down control
Eliminates scrap caused by overpowering of material at slower than normal processing speeds.
Tech Parameters
| Quantity of Lasers | 1 | |
| Web Width | 1.53 m (60 in) | |
| Laser Power* | 400, 600, 1000 and 2500 Watts* | |
| Laser Wavelengths | 9.3µm (400 and 1000 Watt) or 10.6µm (all) | |
| Galvanometers | 3-Axis, traveling head type, field-of-view is process-dependent | |
| AcuBeam™ Software | Windows® based with full graphical / CAD interface | |
| Patented AcuPower™ Control | Adjustment of laser power "on-the-fly" based on the beam movements | |
| Job Database | Reduces setup time; consistent production from operator to operator | |
| Safety Enclosure | Class 1 | |
| Lower Vacuum Work Support | Included, with debris collection bin | |
| Processing Speeds** | Step-and-Repeat web direction motion Step-and-Repeat or On-the-Fly cross web motion |
|
| Abrasive Grits | With Holes: 36 grit or higher | |
| Without Holes: 24 grit or higher | ||
| System Footprint | Length: 15.2 m (50 ft) | |
| Width: 8.5 m (28 ft) | ||
| Height: 2.6 m (8.7 ft) | ||
| Power Requirements*** | Controller & Chiller (Int): 380-420 VAC, 3 PH, 50 Hz | |
| Controller & Chiller (US): 440-480 VAC, 3 PH, 60 Hz | ||
The above data is subject to change. Consult with Preco, Inc.
*Other laser sizes available per request
**Processing speed is dependent on the part size and geometry, laser power, material type and thickness.
***May be powered separate or by laser system.
System Options
The WebPro LB3500 is available with a variety of options including laminators, rotary die cutters, or multiple stations consisting of both lasers and rotary die cutters.
- Web Automation
Web steering, Closed loop web tensioning or dancers, Pre or post process lamination, Weed/scrap stripping, Knife Slitting, Discrete part take-away conveyor, Guillotine Sheeter, 152 mm (6 in) core airchucks or adapters, Splice detection, Vision QC - Conveyor
Delivers discs from cut zone to operator or robotic stacking workstation
- Vision Registration System
Single or dual cameras for X-Y-Ø positioning of the cut pattern to material features - Lower Vacuum Work Support
External filtering or debris separator - Robotics
Single or dual spider robots and stacking conveyors
ADDITIONAL OPTIONS
- Unwind with Steering
- Splice Detector
- Tension Control
- Weed Wind-Up
- Rewind
- Web Break Sensor
- Slitter / Air Amplifier
- Work Support
- Nip Drive
- Splice Table
- Edge Guide Sensor
- Strip Roller
